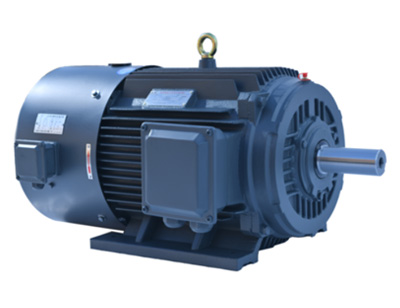

产品概述
YVF2-H 系列电动机是一种交流、高效、节能变频调速船用电动机，与变频
器配合使用，是机电一体化的调速新产品。功率等级和安装尺寸完全符合国际电
工委员会（IEC）标准，适用于船舶上作驱动各种机械，如泵类、通风机、分离
器、液压机械及其它辅助设备等之用。该电机具有如下优点：
1. 效率高，节能效果明显；
2. 调频范围下，能在 5Hz~100Hz 甚至更广的范围内平滑无极调速；
3. 噪声低、振动小；
4. 起动转矩大、起动电流小，无须附加起动设备，低频起动对负载冲击小；
5. 结构简单，运行稳定，使用可靠，维护方便；
6. 单独装有强迫冷却风机，在不同的转速下均有较好的冷却效果；
7.应用范围广，可以在基频（50Hz）以下作恒转矩、基频（50Hz）以上作恒功率
运行，基本可以取代任何一种调速产品。
工作环境
海拔≤1000m
环境温度： 0~+45℃
空气相对湿度 ≤95%
倾斜: ±30°
摇摆: ±22.5°
有盐雾、油雾、霉菌及海水的影响
有船舶和近海装置正常营运和作业中产生的冲击、振动的影响
防护等级：IP54; 绝缘等级：F
电压/频率：380V/50Hz
调频范围：
机座号：80~225：恒转矩：5~50Hz；恒功率：50~100Hz；
机座号：250~355：恒转矩：3~50Hz；恒功率：50~100Hz；

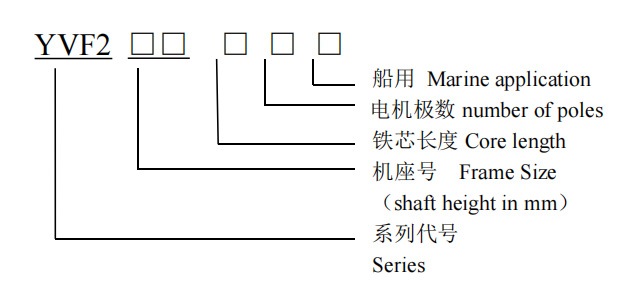

型号说明
轴承
|
机座号
|
极数
|
轴承
|
|
主轴伸端
|
非轴伸端
|
|
B3、B5、B35
|
V1
|
Non-Driving end
|
|
80
|
2，4
|
6204-2RS/C3
|
6204-2RS/C3
|
|
90
|
2，4，6
|
6205-2RS/C3
|
6205-2RS/C3
|
|
100
|
2，4，6
|
6206-2RS/C3
|
6206-2RS/C3
|
|
112
|
2，4，6，8
|
6206-2RS/C3
|
6206-2RS/C3
|
|
132
|
2，4，6，8
|
6208-2RS/C3
|
6208-2RS/C3
|
|
160
|
2，4，6，8
|
6309-2RS/C3
|
6309-2RS/C3
|
|
180
|
2，4，6，8
|
6311/C3
|
6311/C3
|
|
200
|
2，4，6，8
|
6312/C3
|
6312/C3
|
|
225
|
2 / 4，6，8
|
6312/C3/6313/C3
|
6312/C3
|
|
250
|
2 / 4，6，8
|
6313/C3/6314/C3
|
6313/C3
|
|
280
|
2/4，6，8
|
6314/C3/6317/C3
|
6314C3
|
|
315
|
2/4，6，8
|
6317/C3/N319/Z2
|
7317ACJ/7319ACJ
|
6317/C3/6319/Z2
|
|
355
|
2/4，6，8
|
6319/C3/N322/Z2
|
7319ACJ/7322ACJ
|
6319/C3/6322/Z2
|
技术数据
|
型 号
|
标称功率(kW)
|
标称电流(A)
|
额定转速(r/min)
|
额定转矩(N·m)
|
额定转矩
|
恒转矩变频范围
|
恒功率变频范围
|
|
YVF2-80M1-4-H
|
0.55
|
1.5
|
1390
|
3.5
|
2.3
|
5～50
|
50～100
|
|
YVF2-80M2-4-H
|
0.75
|
2.1
|
1390
|
4.7
|
|
YVF2-90S-4-H
|
1.1
|
2.7
|
1400
|
7
|
|
YVF2-90L-4-H
|
1.4
|
3.6
|
1400
|
9.5
|
|
YVF2-100L1-4-H
|
2.2
|
5
|
1420
|
14
|
|
YVF2-100L2-4-H
|
3
|
6.8
|
1420
|
14
|
|
YVF2-112M-4-H
|
4
|
8.9
|
1440
|
25.4
|
|
YVF2-132S-4-H
|
5.5
|
11.7
|
1440
|
35
|
|
YVF2-132M-4-H
|
7.5
|
15.4
|
1440
|
47.7
|
|
YVF2-160M-4-H
|
11
|
22.6
|
1460
|
70
|
|
YVF2-160L-4-H
|
15
|
30.5
|
1460
|
95.5
|
|
YVF2-180M-4-H
|
18.5
|
35.9
|
1470
|
117.1
|
|
YVF2-180L-4-H
|
22
|
42.2
|
1470
|
140.9
|
|
YVF2-200L-4-H
|
30
|
57.3
|
1476
|
190.9
|
|
YVF2-225S-4-H
|
37
|
70.2
|
1481
|
235.5
|
|
YVF2-225M-4-H
|
45
|
84
|
1480
|
286.4
|
|
YVF2-250M-4-H
|
55
|
104
|
1480
|
350.1
|
3～50
|
|
YVF2-280S-4-H
|
75
|
139
|
1480
|
477.7
|
|
YVF2-280M-4-H
|
90
|
164
|
1480
|
572.9
|
|
YVF2-315S-4-H
|
110
|
201
|
1480
|
700.2
|
2.2
|
|
YVF2-315M-4-H
|
132
|
240
|
1480
|
840.3
|
|
|
YVF2-315L1-4-H
|
160
|
289
|
1480
|
1018
|
|
|
YVF2-315L2-4-H
|
200
|
361
|
1480
|
1273
|
|
|
YVF2-355M-4-H
|
250
|
465
|
1480
|
1592
|
|
|
YVF2-355L-4-H
|
315
|
582
|
1480
|
2005
|
|
|
YVF2-90S-6-H
|
0.75
|
2.2
|
910
|
7.2
|
2.1
|
5～50
|
50～100
|
|
YVF2-90L-6-H
|
1.1
|
3.2
|
910
|
10.5
|
|
YVF2-100L-6-H
|
1.5
|
4
|
940
|
14.3
|
|
YVF2-112M-6-H
|
2.2
|
5.8
|
940
|
21
|
|
YVF2-132S-6-H
|
3
|
7.2
|
960
|
28.7
|
|
YVF2-132M1-6-H
|
4
|
9.5
|
960
|
38.2
|
|
YVF2-132M2-6-H
|
5.5
|
12.5
|
960
|
52.5
|
|
YVF2-160M-6-H
|
7.5
|
17.1
|
970
|
71.6
|
|
YVF2-160L-6-H
|
11
|
25
|
970
|
105.1
|
|
YVF2-180L-6-H
|
15
|
33
|
970
|
143.2
|
|
YVF2-200L1-6-H
|
18.5
|
37.6
|
980
|
176.7
|
|
YVF2-200L2-6-H
|
22
|
44.7
|
980
|
210.1
|
|
YVF2-225M-6-H
|
30
|
61.1
|
985
|
286.5
|
|
YVF2-250M-6-H
|
37
|
71
|
980
|
353.4
|
3～50
|
|
YVF2-280S-6-H
|
45
|
86.4
|
980
|
429.8
|
2
|
|
YVF2-280M-6-H
|
55
|
103
|
980
|
525.3
|
|
YVF2-315S-6-H
|
75
|
141
|
980
|
716.3
|
|
YVF2-315M-6-H
|
90
|
169
|
980
|
859.5
|
|
YVF2-315L1-6-H
|
110
|
206
|
980
|
1051
|
|
YVF2-315L2-6-H
|
132
|
246
|
980
|
1261
|
|
YVF2-355M1-6-H
|
160
|
302
|
980
|
1528
|
|
YVF2-355M2-6-H
|
200
|
377
|
980
|
1910
|
|
YV F2-355L-6-H
|
250
|
469
|
980
|
2388
|
|
YVF2-132S-8-H
|
2.2
|
5.8
|
710
|
28
|
5～50
|
50～100
|
|
YVF2-132M-8-H
|
3
|
7.6
|
710
|
38.2
|
|
|
YVF2-160M1-8-H
|
4
|
10.5
|
720
|
50.9
|
|
|
YVF2-160M2-8-H
|
5.5
|
13.4
|
720
|
70
|
|
|
YVF2-160L-8-H
|
7.5
|
17.7
|
720
|
95.5
|
|
|
YVF2-180L-8-H
|
11
|
25.6
|
730
|
140.1
|
|
|
YVF2-200L-8-H
|
15
|
33.3
|
729
|
191
|
|
|
YVF2-225S-8-H
|
18.5
|
40.3
|
735
|
235.6
|
|
|
YVF2-225M-8-H
|
22
|
47.4
|
734
|
278.1
|
|
|
YVF2-250M-8-H
|
30
|
64.7
|
730
|
382
|
3～50
|
|
|
YVF2-280S-8-H
|
37
|
79.8
|
740
|
471.1
|
|
|
YVF2-280M-8-H
|
45
|
94.8
|
740
|
573
|
|
|
YVF2-315S-8-H
|
55
|
113.5
|
740
|
700.3
|
|
|
YVF2-315M-8-H
|
75
|
152
|
740
|
955
|
|
|
YVF2-315L1-8-H
|
90
|
179
|
740
|
1146
|
|
|
YVF2-315L2-8-H
|
110
|
218
|
740
|
1400
|
|
|
YVF2-355M1-8-H
|
132
|
265
|
740
|
1681
|
|
|
YVF2-355M2-8-H
|
160
|
320
|
740
|
2037
|
|
|
YVF2-355L-8-H
|
200
|
399
|
740
|
2547
|
|
外形及安装尺寸

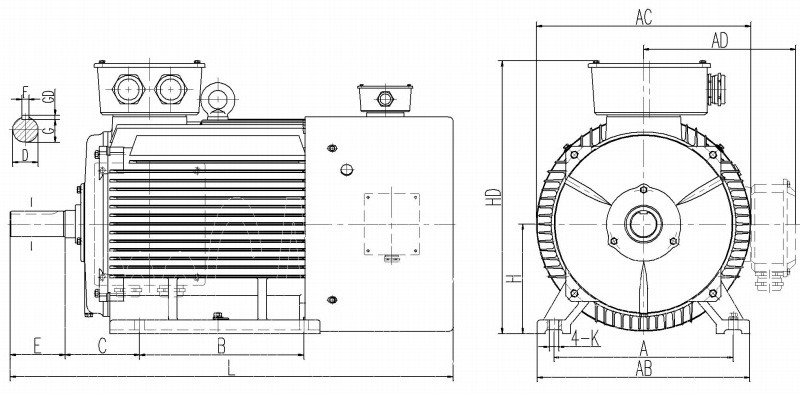

B3 型
|
机座号
|
安 装 及 外 形 尺 寸
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
GD
|
H
|
K
|
AB
|
AC
|
AD
|
HD
|
L
|
|
80M
|
125
|
100
|
50
|
19
|
40
|
6
|
15.5
|
6
|
80
|
10
|
165
|
175
|
160
|
240
|
350
|
|
90S
|
140
|
56
|
24
|
50
|
8
|
20
|
7
|
90
|
180
|
195
|
175
|
270
|
400
|
|
90L
|
125
|
430
|
|
100L
|
160
|
140
|
63
|
28
|
60
|
24
|
100
|
12
|
205
|
215
|
185
|
290
|
465
|
|
112M
|
190
|
70
|
112
|
245
|
240
|
195
|
320
|
490
|
|
132S
|
216
|
89
|
38
|
80
|
10
|
33
|
8
|
132
|
280
|
275
|
245
|
365
|
430
|
|
132M
|
178
|
590
|
|
160M
|
254
|
210
|
108
|
42
|
110
|
12
|
37
|
160
|
15
|
330
|
330
|
270
|
440
|
660
|
|
160L
|
254
|
715
|
|
180M
|
279
|
241
|
121
|
48
|
14
|
42.5
|
9
|
180
|
355
|
380
|
290
|
475
|
810
|
|
180L
|
279
|
850
|
|
200L
|
318
|
305
|
133
|
55
|
16
|
49
|
10
|
200
|
19
|
395
|
420
|
355
|
525
|
890
|
|
225S
|
356
|
286
|
149
|
60
|
140
|
18
|
53
|
11
|
225
|
435
|
470
|
370
|
580
|
930
|
|
225M
|
311
|
970
|
|
250M
|
406
|
349
|
168
|
65
|
140
|
18
|
58
|
11
|
250
|
24
|
490
|
510
|
455
|
650
|
1050
|
|
280S
|
457
|
368
|
190
|
75
|
20
|
67.5
|
12
|
280
|
550
|
580
|
470
|
705
|
1100
|
|
280M
|
419
|
1160
|
|
315S
|
508
|
406
|
216
|
80
|
170
|
22
|
71
|
14
|
315
|
28
|
744
|
645
|
576
|
875
|
1330
|
|
315M
|
457
|
1470
|
|
315L
|
508
|
|
355M
|
610
|
560
|
254
|
95
|
25
|
86
|
14
|
355
|
28
|
740
|
750
|
680
|
1045
|
1750
|

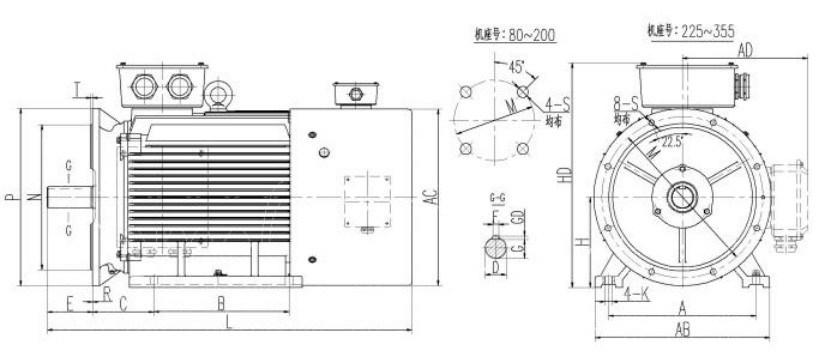

B35 型
|
机座号
|
安装及外形尺寸
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
GD
|
H
|
K
|
M
|
N
|
P
|
R
|
S
|
T
|
AB
|
AC
|
AD
|
HD
|
HD '
|
L
|
|
80M
|
125
|
100
|
50
|
19
|
40
|
6
|
15.5
|
6
|
80
|
10
|
165
|
130
|
200
|
0±1.5
|
12
|
3.5
|
165
|
175
|
160
|
205
|
240
|
350
|
|
90S
|
140
|
56
|
24
|
50
|
8
|
20
|
7
|
90
|
180
|
195
|
175
|
225
|
270
|
400
|
|
90L
|
125
|
430
|
|
100L
|
160
|
140
|
63
|
28
|
60
|
24
|
100
|
12
|
215
|
180
|
250
|
0±2.0
|
15
|
4
|
205
|
215
|
185
|
250
|
290
|
465
|
|
112M
|
190
|
70
|
112
|
245
|
240
|
195
|
270
|
320
|
490
|
|
132S
|
216
|
89
|
38
|
80
|
10
|
33
|
8
|
132
|
265
|
230
|
300
|
280
|
275
|
245
|
320
|
365
|
530
|
|
132M
|
178
|
590
|
|
160M
|
254
|
210
|
108
|
42
|
110
|
12
|
37
|
160
|
15
|
300
|
250
|
350
|
0±3.0
|
19
|
5
|
330
|
330
|
270
|
385
|
440
|
660
|
|
160L
|
254
|
715
|
|
180M
|
279
|
241
|
121
|
48
|
14
|
42.5
|
9
|
180
|
355
|
380
|
290
|
425
|
475
|
810
|
|
180L
|
279
|
850
|
|
200L
|
318
|
305
|
133
|
55
|
16
|
49
|
10
|
200
|
19
|
350
|
300
|
400
|
395
|
420
|
355
|
475
|
525
|
890
|
|
225S
|
356
|
286
|
149
|
60
|
140
|
18
|
53
|
11
|
225
|
400
|
350
|
450
|
0±4.0
|
435
|
470
|
370
|
530
|
580
|
930
|
|
225M
|
311
|
970
|
|
250M
|
406
|
349
|
168
|
65
|
140
|
18
|
58
|
11
|
250
|
24
|
500
|
450
|
550
|
490
|
510
|
455
|
570
|
650
|
1050
|
|
280S
|
457
|
368
|
190
|
75
|
20
|
67.5
|
12
|
280
|
550
|
580
|
470
|
640
|
705
|
1100
|
|
280M
|
419
|
1160
|
|
315S
|
508
|
406
|
216
|
80
|
170
|
22
|
71
|
14
|
315
|
28
|
600
|
550
|
660
|
24
|
6
|
744
|
645
|
576
|
865
|
875
|
1330
|
|
315M
|
457
|
1450
|
|
315L
|
508
|
1450
|
|
355M
|
610
|
560
|
254
|
95
|
25
|
86
|
14
|
355
|
740
|
680
|
800
|
740
|
750
|
680
|
1035
|
1045
|
1750
|

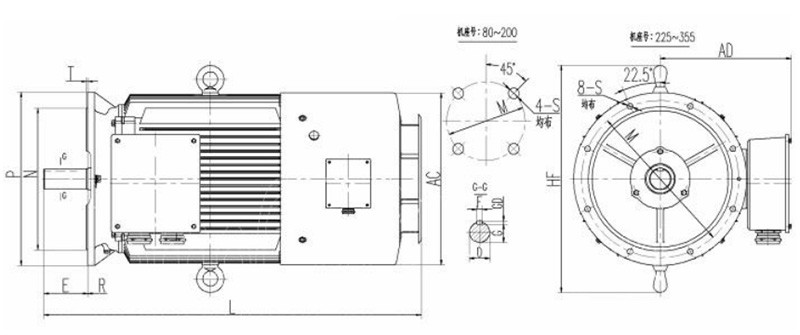

V1 型
|
机座号
|
安装及外形尺寸
|
|
D
|
E
|
F
|
G
|
GD
|
M
|
N
|
P
|
S
|
R
|
T
|
AC
|
AD
|
HF
|
L
|
|
80M
|
19
|
40
|
6
|
15.5
|
6
|
165
|
130
|
200
|
12
|
0±1.5
|
3.5
|
175
|
160
|
260
|
390
|
|
90S
|
24
|
50
|
8
|
20
|
7
|
195
|
175
|
270
|
445
|
|
90L
|
480
|
|
100L
|
28
|
60
|
24
|
215
|
180
|
250
|
15
|
0±2.0
|
4
|
215
|
185
|
300
|
510
|
|
112M
|
240
|
195
|
320
|
535
|
|
132S
|
38
|
80
|
10
|
33
|
8
|
265
|
230
|
300
|
275
|
245
|
380
|
580
|
|
132M
|
635
|
|
160M
|
42
|
110
|
12
|
37
|
300
|
250
|
350
|
19
|
0±3.0
|
5
|
330
|
270
|
450
|
715
|
|
160L
|
770
|
|
180M
|
48
|
14
|
42.5
|
9
|
380
|
290
|
490
|
870
|
|
180L
|
910
|
|
200L
|
55
|
16
|
49
|
10
|
350
|
300
|
400
|
420
|
355
|
550
|
950
|
|
225S
|
60
|
140
|
18
|
53
|
11
|
400
|
350
|
450
|
0±4.0
|
470
|
370
|
610
|
995
|
|
225M
|
1020
|
|
250M
|
65
|
140
|
18
|
58
|
11
|
500
|
450
|
550
|
510
|
455
|
645
|
1110
|
|
280S
|
75
|
20
|
67.5
|
12
|
580
|
470
|
720
|
1170
|
|
280M
|
1230
|
|
315S
|
80
|
170
|
22
|
71
|
14
|
600
|
550
|
660
|
24
|
6
|
645
|
576
|
900
|
1450
|
|
315M
|
1600
|
|
315L
|
1600
|
|
355M
|
95
|
|
25
|
86
|
14
|
740
|
680
|
800
|
750
|
680
|
1035
|
1800
|
|
355L
|
1800
|

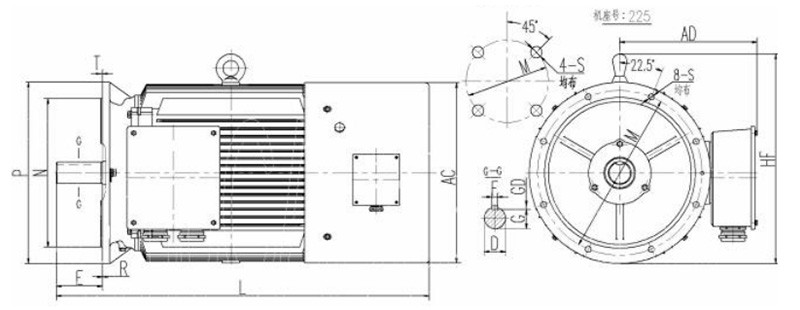

B5 型
|
机座号
|
安装及外形尺寸
|
|
D
|
E
|
F
|
G
|
GD
|
M
|
N
|
P
|
R
|
S
|
T
|
AC
|
AD
|
HF
|
L
|
|
80M
|
19
|
40
|
6
|
15.5
|
6
|
165
|
130
|
200
|
0±1.5
|
12
|
3.5
|
175
|
160
|
230
|
350
|
|
90S
|
24
|
50
|
8
|
20
|
7
|
195
|
175
|
235
|
400
|
|
90L
|
430
|
|
100L
|
28
|
60
|
24
|
215
|
180
|
250
|
0±2.0
|
15
|
4
|
215
|
185
|
275
|
465
|
|
112M
|
240
|
195
|
285
|
490
|
|
132S
|
38
|
80
|
10
|
33
|
8
|
265
|
230
|
300
|
275
|
245
|
340
|
530
|
|
132M
|
590
|
|
160M
|
42
|
110
|
12
|
37
|
300
|
250
|
350
|
0±3.0
|
19
|
5
|
330
|
270
|
400
|
660
|
|
160L
|
715
|
|
180M
|
48
|
14
|
42.5
|
9
|
380
|
290
|
435
|
810
|
|
180L
|
850
|
|
200L
|
55
|
16
|
49
|
10
|
350
|
300
|
400
|
420
|
355
|
480
|
890
|
|
225S
|
60
|
140
|
18
|
53
|
11
|
400
|
350
|
450
|
0±4.0
|
470
|
370
|
530
|
930
|
|
225M
|
970
|
注：本产品样本中，所有产品数据参数仅供参考，如有疑问请与工厂联系，并以定货时提供给用户的确认资料为准。
