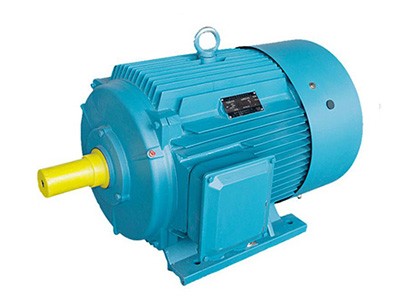

YD-H系列船用多速三相异步电动机
产品概述
YD-H系列三相异步电动机是自扇冷式，全封闭，多速，鼠笼式，船用三相异步电动机，该类电动机具有可随负载性质的要求而有级地变化转速，从而达到功率的合理匹配和简化多速系统的特点。该电机适用于船舶上驱动需要变速的各种机械。该产品具有效率高，节能，起动转矩大、性能好、噪声低，振动小等特点。
工作环境条件
海拔≤1000m
环境温度： 0~+45℃
空气相对湿度 ≤95%
倾斜: ±30°
摇摆: ±22.5°
有盐雾、油雾、霉菌及海水的影响
有船舶和近海装置正常营运和作业中产生的冲击、振动的影响
防护等级：IP56; 绝缘等级：F
电压/频率：380V/50Hz

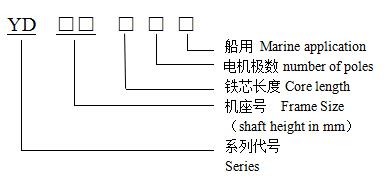

型号说明
技术数据
型号 功 率 kW 额定电流 A 额定转速 r/min 接 法 型号 功 率 kW 额定电流 A 额定转速 r/min 接 法
YD80M1-2/4-H 0.55/0.45 1.5/1.4 2860/1420 YY/△ YD160L-6/12-H 7/3.7 15.8/16.1 970/480 YY/△
YD80M2-2/4-H 0.75/0.55 2.0/1.7 2860/1420 YD160L-2/4/6-H 9/7/4.5 18.8/15.1/11.4 2940/1470/970 YY/△/Y
YD90S-2/4-H 1.1/0.85 2.8/2.3 2845/1415 YD160L-2/4/8-H 9/7/2.8 18.8/15.1/9.2 2940/1470/730
YD90L-2/4-H 1.8/1.3 4.4/3.3 2850/1410 YD160L-4/6/8-H 7.5/6/4.5 15.6/14.5/13.8 1460/980/730
YD90S-4/6-H 0.85/0.65 2.3/2.3 1410/920 YD180M-2/4-H 18.5/15 36.7/29.4 2910/1470 YY/△
YD90L-4/6-H 1.1/0.85 3.0/2.8 1415/925 YD180M-4/6-H 14/11 29.8/25.9 1470/980
YD90L-4/8-H 0.75/0.45 1.9/1.9 1390/670 YD180M-6/8-H 10/7.5 24.5/21.9 980/730
YD90S-6/8-H 0.45/0.35 1.4/1.6 930/675 YD180L-2/4-H 22/18.5 42.9/35.9 2910/1470
YD90L-6/8-H 0.65/0.45 1.8/1.9 920/680 YD180L-4/6-H 16/13 33.7/29.8 1470/980
YD100L1-2/4-H 2.4/2.0 5.6/4.8 2850/1430 YD180L-4/8-H 17/11 32.3/26.7 1470/730
YD100L2-2/4-H 3.0/2.4 6.7/5.6 2850/1430 YD180L-6/8-H 12/9 28.3/24.8 980/730
YD100L1-4/6-H 1.8/1.3 4.4/3.8 1440/940 YD180L-6/12-H 10/5.5 20.5/19.6 980/490
YD100L2-4/6-H 2.2/1.5 5.4/4.3 1430/940 YD200L-2/4-H 30/26 58.3/49.9 2950/1470
YD100L-4/8-H 1.5/0.85 3.5/3.1 1410/710 YD200L-4/6-H 22/18.5 44.9/41.4 1460/980
YD100L-6/8-H 1.1/0.75 3.1/2.9 950/710 YD200L1-4/8-H 22/14 41.3/33 1470/740
YD100L-2/4/6-H 1.8/1.3/0.75 4.5/3.7/2.6 2900/1450/950 YY/△/Y YD200L2-4/8-H 26/17 48.8/40.1 1470/740
YD112M-2/4-H 4.0/3.0 8.6/7.4 2960/1460 YY/△ YD200L1-6/8-H 17/12 39.1/32.6 980/730
YD112M-4/6-H 2.8/2.2 6.7/5.7 1450/945 YD200L2-6/8-H 20/15 45.4/40.3 980/730
YD112M-4/8-H 2.4/1.5 5.3/5.0 1445/690 YD200L1-6/12-H 13/7.5 26.4/24.5 970/490
YD112M-6/8-H 1.8/1.3 4.8/4.5 950/695 YD200L2-6/12-H 15/9 30.1/28.9 970/490
YD112M-2/4/6-H 2.4/2.0/1.1 5.8/5.1/3.5 2975/1465/960 YY/△/Y YD200L-4/6/8-H 17/13/10 33.4/28.7/24.8 1470/980/740 YY/△/Y
YD112M-2/4/8-H 2.4/2.0/0.65 5.8/5.1/2.7 2975/1465/685 YD225S-2/4-H 37/32 71.1/60.7 2960/1470 YY/△
YD112M-4/6/8-H 1.5/1.0/0.85 3.5/3.1/3.7 1460/950/700 YD225S-4/6-H 28/22 56.5/44.2 1470/980
YD132S-2/4-H 5.5/4.5 11.9/9.8 2955/1470 YY/△ YD225M-2/4-H 45/37 86.4/69.4 2960/1470
YD132S-4/6-H 4/3 9.5/7.7 1470/960 YD225M-4/6-H 32/26 63.2/52.2 1470/980
YD132S-4/8-H 3.3/2.2 7.1/7.0 1460/710 YD225M-4/8-H 34/24 66.7/53.2 1470/740
YD132S-6/8-H 2.4/1.8 6.2/5.8 970/710 YD225M-6/12-H 20/12 39.7/35.2 980/480
YD132S-2/4/6-H 3/2.6/1.8 7.4/6.1/5.1 2970/1470/970 YY/△/Y YD225S-4/6/8-H 24/18.5/14 48/40/35 1480/990/740 YY/△/Y
YD132S-2/4/8-H 3/2.6/1 7.0/5.9/3.5 2970/1470/710 YD225M-4/6/8-H 28/22/17 54.3/45.2/42.4 1480/990/740
YD132S-4/6/8-H 1.8/1.5/1.1 4.0/4.2/4.1 1470/970/720 YD250M-2/4-H 52/45 98.7/84.4 2960/1480 YY/△
YD132M-2/4-H 8/6.5 17.1/13.8 2960/1470 YY/△ YD250M-4/6-H 42/32 81.1/62.1 1480/980
YD132M-4/6-H 5.5/4 12.3/9.8 1470/960 YD250M-4/8-H 42/30 78.8/65.8 1460/740
YD132M-4/8-H 4.5/3 9.4/9.0 1460/710 YD250M-6/12-H 24/15 47.5/42.1 980/490
YD132M-6/8-H 3.7/2.6 6.2/5.8 970/710 YD250M-4/6/8-H 34/26/24 64.5/52.8/55.3 1480/985/740 YY/△/Y
YD132M1-2/4/6-H 4/3.3/2.2 8.8/7.5/6.0 2970/1470/970 YY/△/Y YD280S-2/4-H 72/60 136.7/111.3 2950/1470 YY/△
YD132M2-2/4/6-H 5/4/2.6 10.8/9.0/6.9 2970/1470/710 YD280S-4/6-H 55/42 106.7/81.5 1470/980
YD132M-2/4/8-H 4.5/3.7/1.3 10/8.4/4.6 YD280S-4/8-H 55/40 102/83.5 1470/730
YD132M1-4/6/8-H 2.2/2/1.5 4.9/5.4/5.2 1470/970/720 YD280S-6/12-H 30/20 59/55 970/490
YD132M2-4/6/8-H 3/2.6/1.8 6.5/6.8/6.1 YD280S-4/6/8-H 42/34/30 78/67.5/68.5 1480/980/740 YY/△/Y
YD160M-2/4-H 11/9 22.9/18.5 2920/1460 YY/△ YD280M-2/4-H 82/72 154/134 2950/1470 YY/△
YD160M-4/6-H 8/6.5 17.4/15.1 1460/960 YD280M-4/6-H 67/55 131.5/107 1470/980
YD160M-4/8-H 7.5/5 15.2/13.9 1450/730 YD280M-4/8-H 67/47 123/97 1470/730
YD160M-6/8-H 6/4.5 14.7/13.3 970/730 YD280M-6/12-H 37/24 73/64 970/490
YD160M-6/12-H 5.0/2.6 11.9/11.6 970/480 YD280M-4/6/8-H 50/37/34 93/73.5/77.5 1480/980/740 YY/△/Y
YD160M-2/4/6-H 6/5/3.7 13.2/11.2/9.5 2940/1470/970 YY/△/Y YD315M-2/4-H 110/82 202/152.5 2950/1470 YY/△
YD160M-2/4/8-H 6/5/2.2 13.2/11.2/7.6 2940/1470/730 YD315M-4/6-H 90/72 175/138.1 1470/980
YD160M-4/6/8-H 5.5/4/3.3 11.6/9.9/10.2 1460/980/730 YD315M-4/8-H 82/55 150.5/113.5 1470/730
YD160L-2/4-H 14/11 28.8/22.3 2920/1460 YY/△ YD315L-2/4-H 132/90 242.5/167 2950/1470
YD160L-4/6-H 11/9 23.7/20.6 1460/960 YD315L-4/6-H 110/82 209/157.3 1470/980
YD160L-4/8-H 11/7 21.8/19 1450/730 YD315L-4/8-H 90/72 167/144 1470/730
YD160L-6/8-H 8/6 19.4/17.5 970/730  

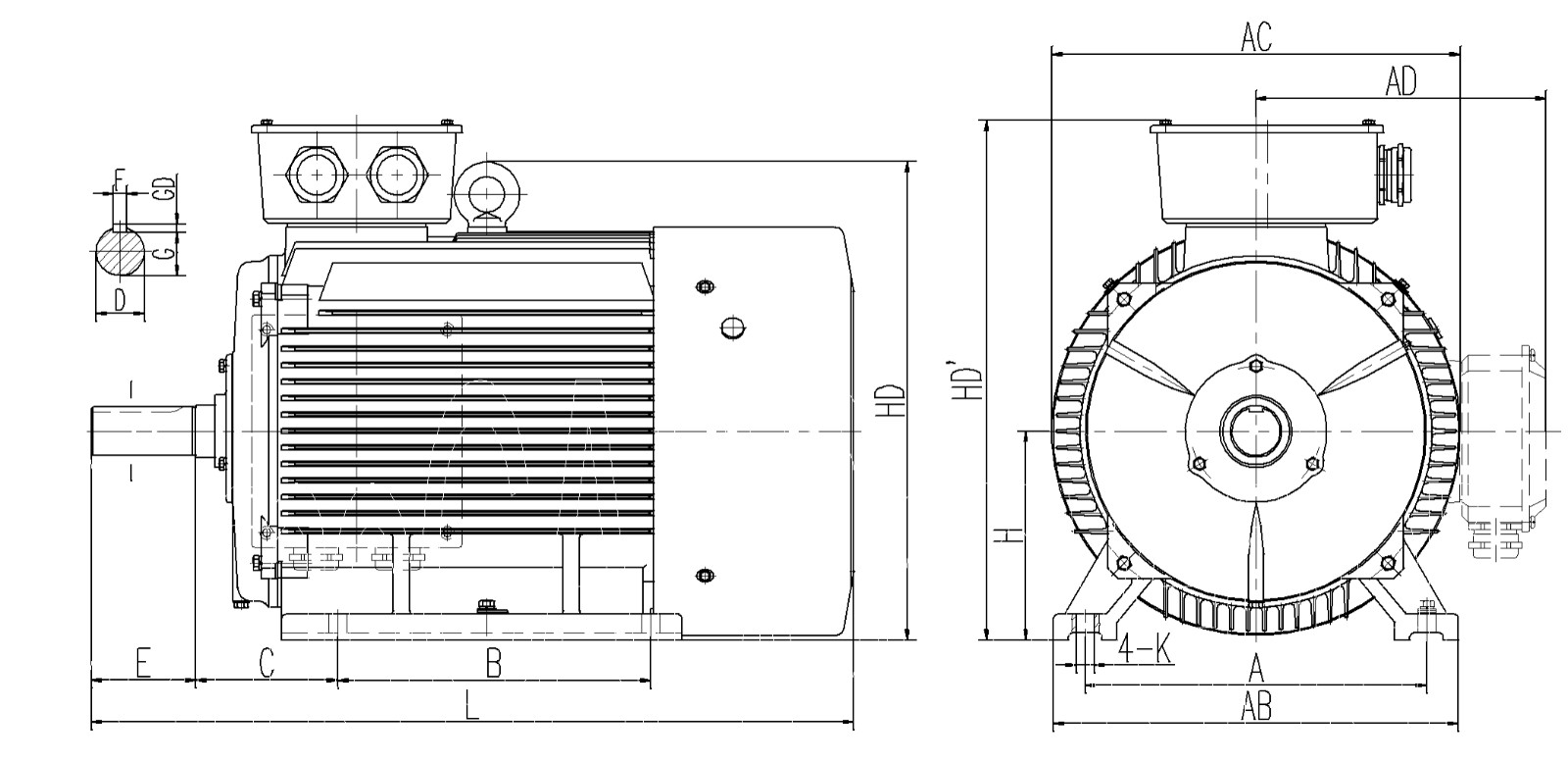

外形及安装尺寸
机座号 安装及外形尺寸
A B C D E F G GD H K AB AC AD HD HD＇ L
80M 125 100 50 19 40 6 15.5 6 80 10 165 175 160 205 240 295
90S 140 56 24 50 8 20 7 90 180 195 175 225 270 320
90L 125 360
100L 160 140 63 28 60 24 100 12 205 215 185 250 290 385
112M 190 70 112 245 240 195 270 320 405
132S 216 89 38 80 10 33 8 132 280 275 245 320 365 500
132M 178 540
160M 254 210 108 42 110 12 37 160 15 330 330 270 385 440 605
160L 254 650
180M 279 241 121 48 14 42.5 9 180 355 380 290 425 475 670
180L 279 710
200L 318 305 133 55 16 49 10 200 19 395 420 355 475 525 780
225S 356 286 149 60 140 18 53 11 225 435 470 370 530 580 830
225M 311 850
250M 406 349 168 65 140 18 58 11 250 24 490 510 455 570 650 935
280S 457 368 190 75 20 67.5 12 280 550 580 470 640 705 1020
280M 419 1070
315S 508 406 216 80 170 22 71 14 315 28 744 645 576 865 875 1270
315M 457 1340
315L 508

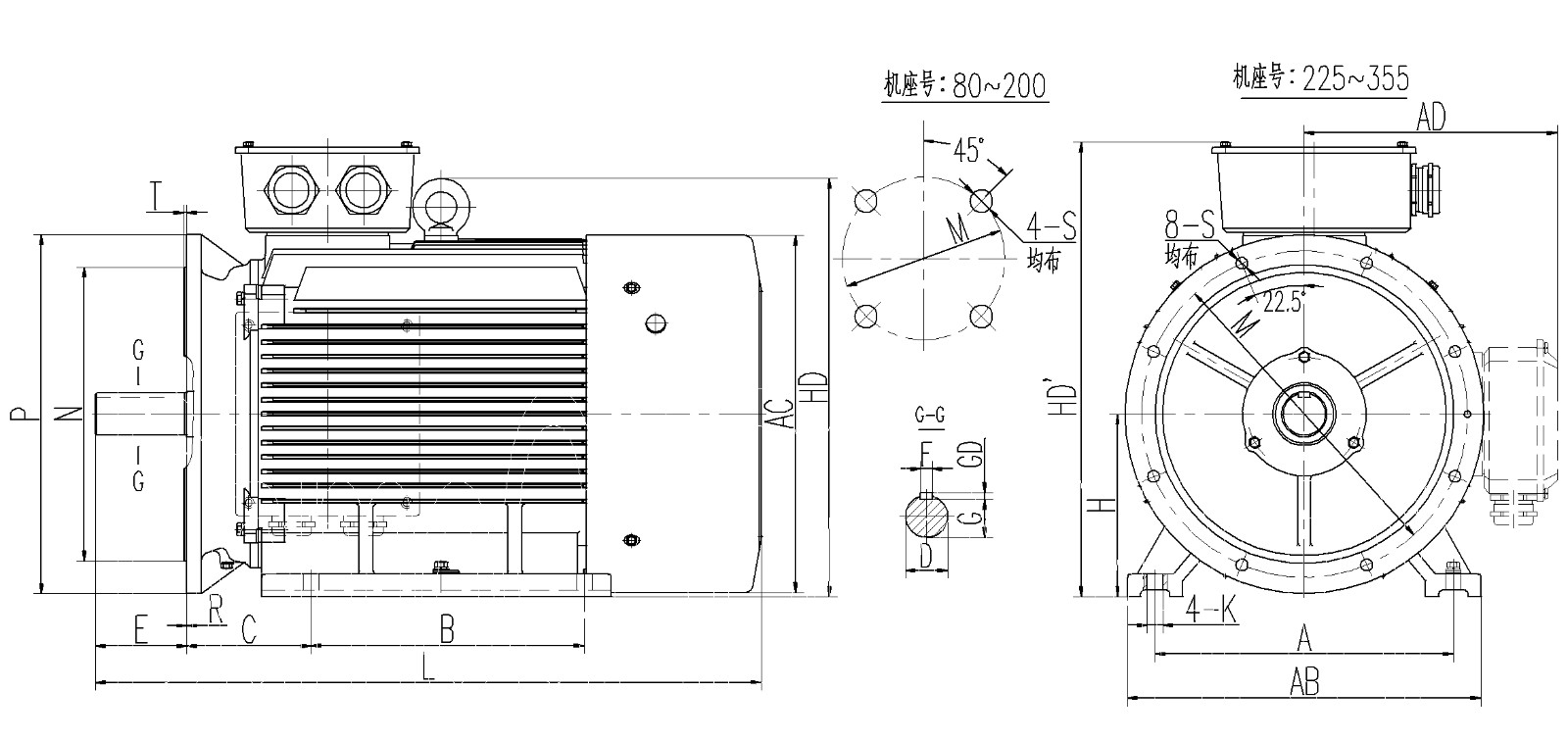

机座号 安装及外形尺寸
A B C D E F G GD H K M N P R S T AB AC AD HD HD＇ L
80M 125 100 50 19 40 6 15.5 6 80 10 165 130 200 0±1.5 12 3.5 165 175 160 205 240 295
90S 140 56 24 50 8 20 7 90 180 195 175 225 270 320
90L 125 360
100L 160 140 63 28 60 24 100 12 215 180 250 0±2.0 15 4 205 215 185 250 290 385
112M 190 70 112 245 240 195 270 320 405
132S 216 89 38 80 10 33 8 132 265 230 300 280 275 245 320 365 500
132M 178 540
160M 254 210 108 42 110 12 37 160 15 300 250 350 0±3.0 19 5 330 330 270 385 440 605
160L 254 650
180M 279 241 121 48 14 42.5 9 180 355 380 290 425 475 670
180L 279 710
200L 318 305 133 55 16 49 10 200 19 350 300 400 395 420 355 475 525 780
225S 356 286 149 60 140 18 53 11 225 400 350 450 0±4.0 435 470 370 530 580 830
225M 311 850
250M 406 349 168 65 140 18 58 11 250 24 500 450 550 490 510 455 570 650 935
280S 457 368 190 75 20 67.5 12 280 550 580 470 640 705 1020
280M 419 1070
315S 508 406 216 80 170 22 71 14 315 28 600 550 660 24 6 744 645 576 865 875 1270
315M 457 1340
315L 508 1340

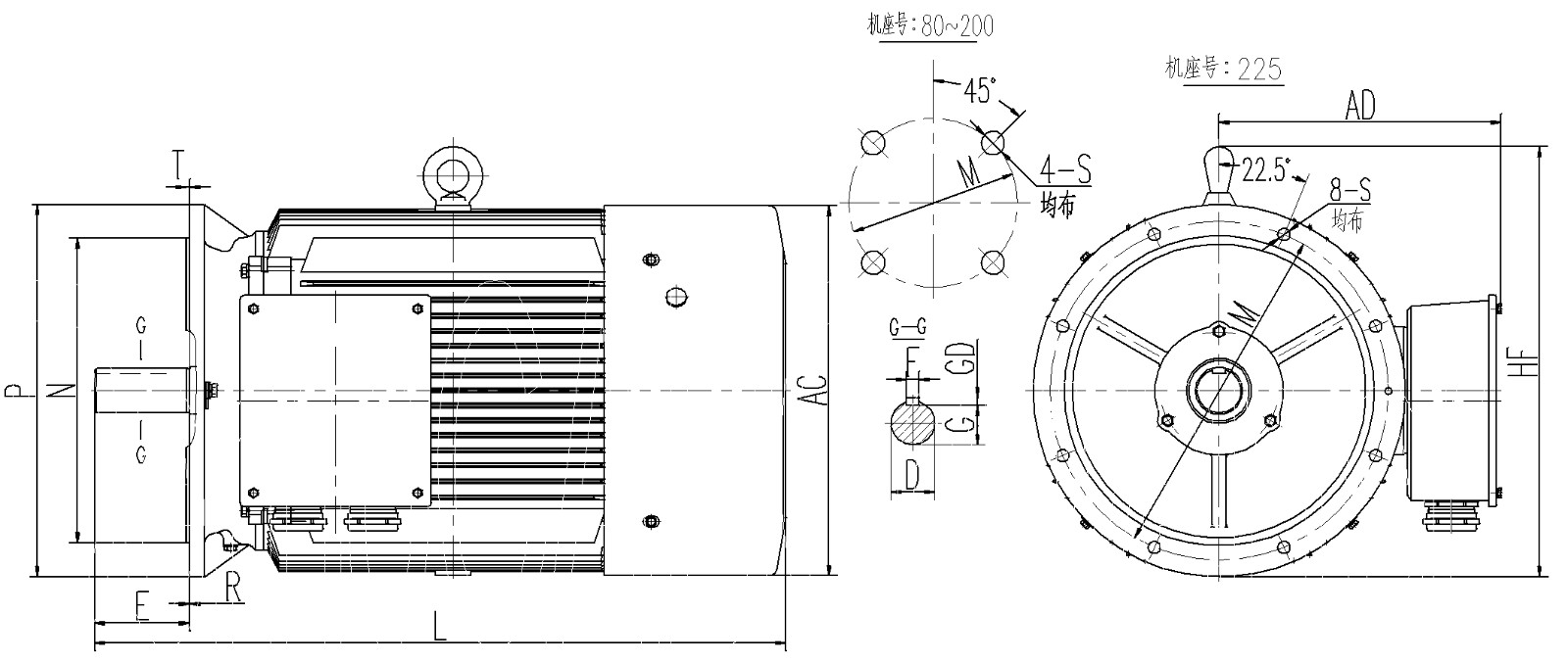

机座号 安装及外形尺寸
D E F G GD M N P S R T AC AD HF L
80M 19 40 6 15.5 6 165 130 200 12 0±1.5 3.5 175 160 260 335
90S 24 50 8 20 7 195 175 270 365
90L 400
100L 28 60 24 215 180 250 15 0±2.0 4 215 185 300 430
112M 240 195 320 450
132S 38 80 10 33 8 265 230 300 275 245 380 535
132M 575
160M 42 110 12 37 300 250 350 19 0±3.0 5 330 270 450 660
160L 705
180M 48 14 42.5 9 380 290 490 730
180L 765
200L 55 16 49 10 350 300 400 420 355 550 840
225S 60 140 18 53 11 400 350 450 0±4.0 470 370 610 890
225M 915
250M 65 140 18 58 11 500 450 550 510 455 645 995
280S 75 20 67.5 12 580 470 720 1090
280M 1140
315S 80 170 22 71 14 600 550 660 24 6 645 576 900 1390
315M 1490
315L 1490

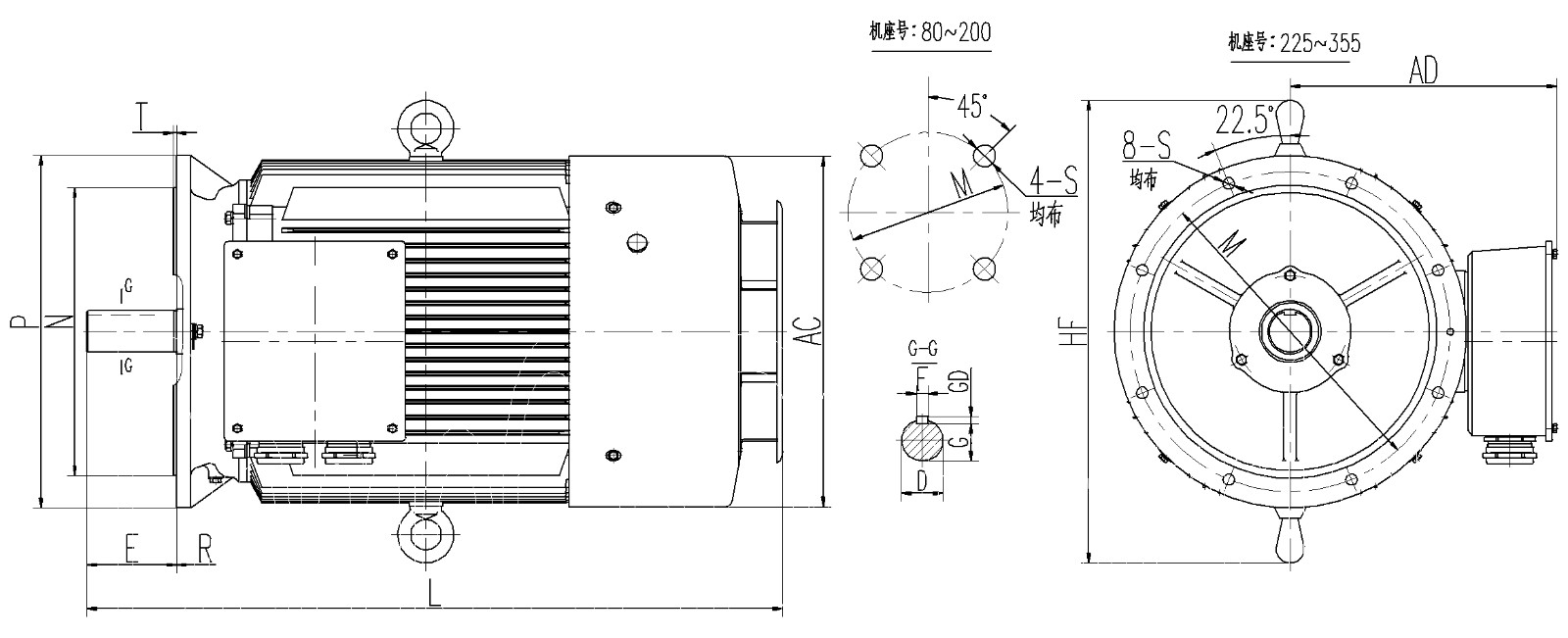

机座号 安装及外形尺寸
D E F G GD M N P R S T AC AD HF L
80M 19 40 6 15.5 6 165 130 200 0±1.5 12 3.5 175 160 230 295
90S 24 50 8 20 7 195 175 235 320
90L 360
100L 28 60 24 215 180 250 0±2.0 15 4 215 185 275 385
112M 240 195 285 405
132S 38 80 10 33 8 265 230 300 275 245 340 500
132M 540
160M 42 110 12 37 300 250 350 0±3.0 19 5 330 270 400 605
160L 650
180M 48 14 42.5 9 380 290 435 670
180L 710
200L 55 16 49 10 350 300 400 420 355 480 780
225S 60 140 18 53 11 400 350 450 0±4.0 470 370 530 830
225M 850
注：本产品样本中，所有产品数据参数仅供参考，如有疑问请与工厂联系，并以定货时提供给用户的确认资料为准。
